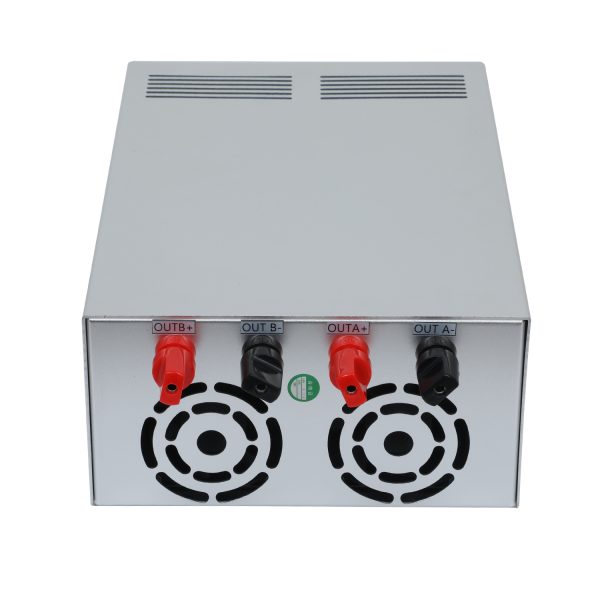

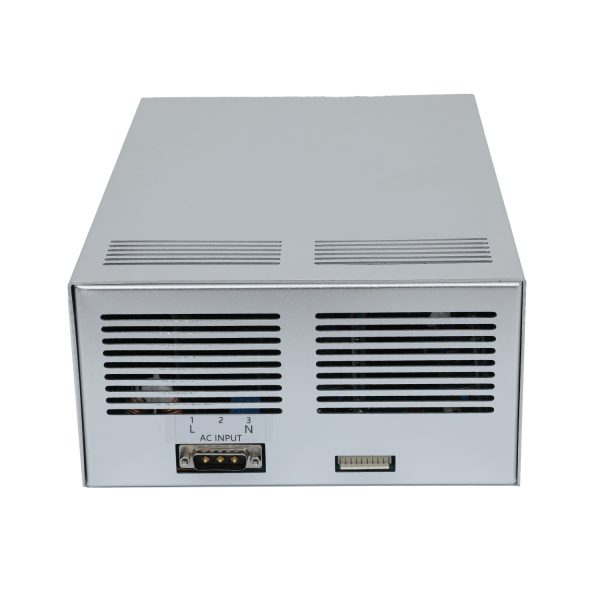

The 65A/2V diode power supply is a constant current output power supply. Outputvoltage adaptive matching laser load (diode characteristics). It is specially designed for1064nm fat dissolving. It is combined with 1064nm fat dissolving handle to form a fatdissolving system, which can realize the beauty efiect of fat dissolving and slimming.
| Item | Parameters |
| Input voltage | G–220VAC/W–110VAC(±10%) |
| Inter voltage frequency | 50Hz~60Hz |
| Output voltage | 0~2VDC |
| Output current | 0~65A |
| Output power | Max.140W |
| Output ripple (output 65A) | <0.1A @25°C |
| Output rise time (output 65A) | ≤ 50ms |
| Output frequency | Continuous |
| Bar number | 1 |
| Laser power according to bars | 50~65W |
| Output current duty cycle | Max.100% |
| Over-current protection | 75A(Automatic recovery) |
| Temperature protection | 65°C |
| Working surroundings temperature | -20~50°C |
| Working surroundings humidity | Relative humidity 10%~85% |
| Storage surroundings temperature | -20~85°C |
| Storage surroundings humidity | Relative humidity 5%~85% |
| Cooling method | Air cooling |
| Insulation impedance | >20MΩ |
| Dimension(L*W*H) | 340.5mm x207mm x106mm |
| Weight | 3.14kg |
| CE certification number | BSTXD190311180001SC BSTXD190311180001EC |
Product Features
1. Output load automatically matched.
2. Input control signal has 5V limit circuit.
3. Multi protections.
4.Two handles are optional.
5. The maximum work width ratio is 100%.
Paper box packaging, with product name, model, manufacturer’s quality department inspection certificate, manufacturing date and other information on the power supply body.
This packaging is suitable for transportation by car, ship, airplane, train, etc. During transportation, it should be rainproof and handled in a civilized manner.
