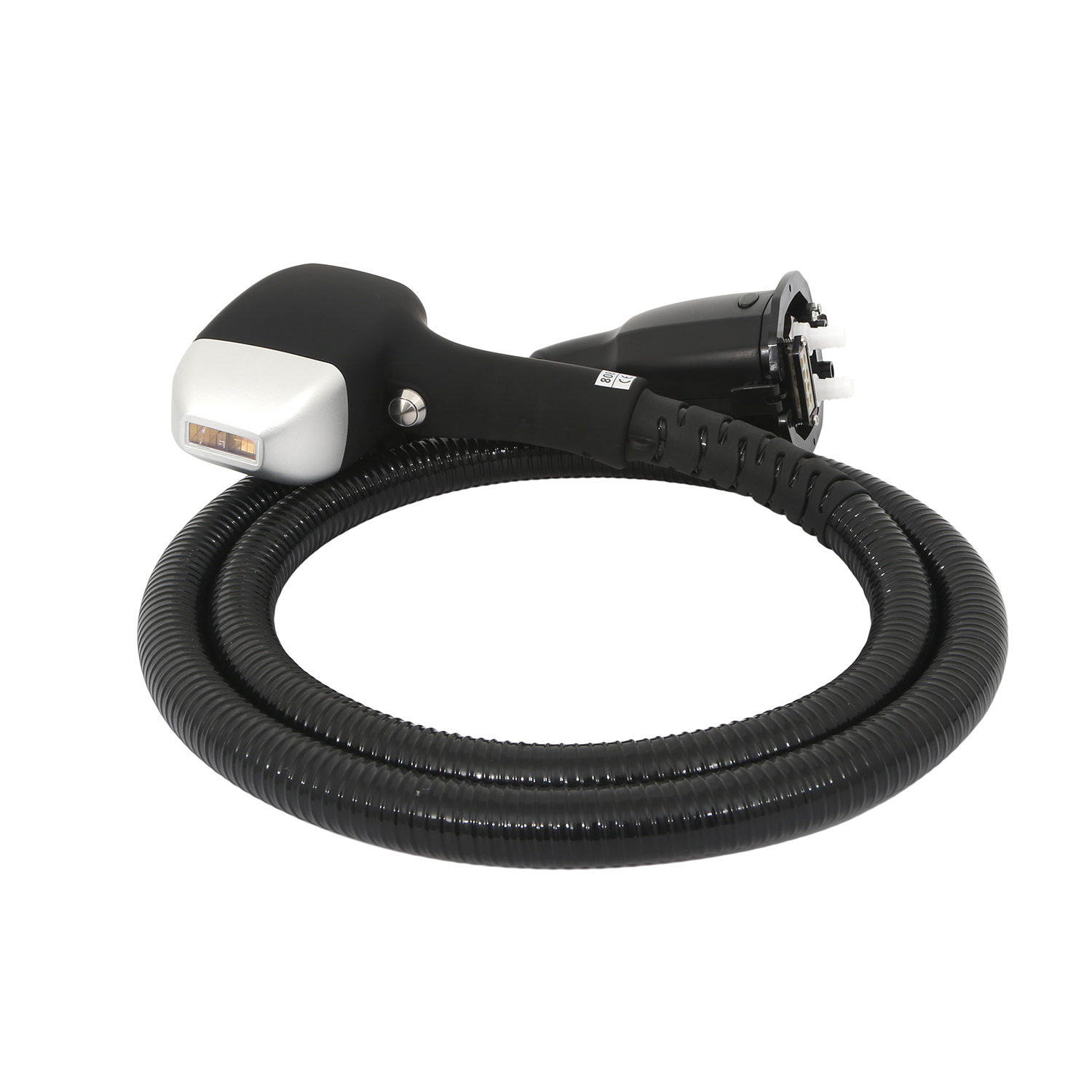

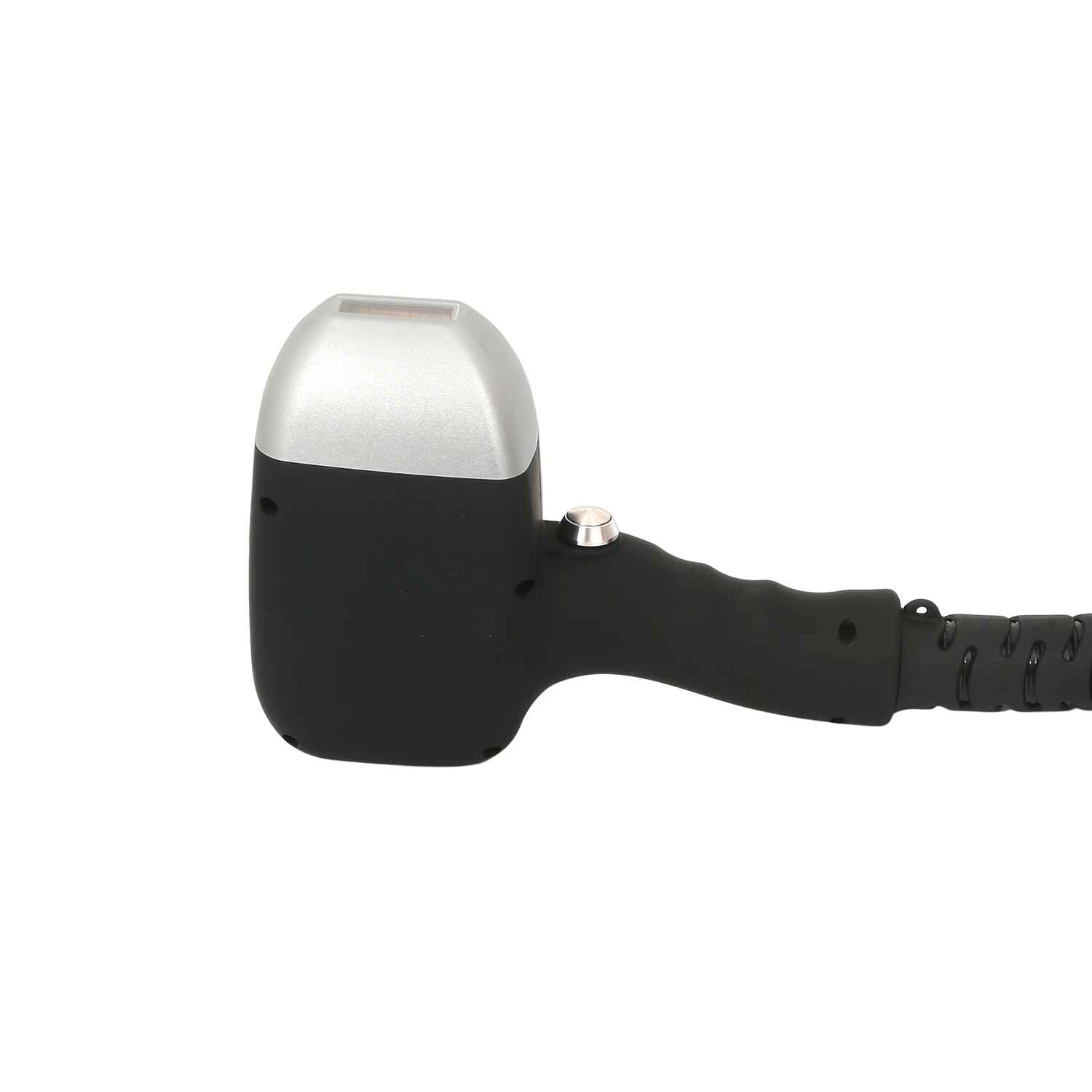

The Diode Laser Handle includes Diode Laser system and TEC refrigeration system, works with Diode Laser Power Supply, suitable for hair removal treatment.
Item | Parameters |
| Light spot size | 10 x 30mm |
| Light wavelength | 808nm |
| Diode Laser Power | 500W-1200W |
| Operating Current | Max. 100A (Recommendation 90A) |
| Operating Voltage | 21.6V |
| Bar Number | 12 |
| Current Duty Cycle | Max. 20% |
| TEC Power | Max. 171W |
| TEC Operating Voltage | 12V |
| Water temperature | ≧10℃ , ≦30℃ |
| Water Flow | ≧3.5L/Min |
| Storage surroundings temperature | -20~85℃ |
| Storage surroundings humidity | Relative humidity 5%~85% |
| Dimension(L*W*H) | 207cm x 14cm x 6cm |
| Weight | 1.9kg |
Product Features
1.Aluminum parts adopt hard oxidation process.
2.The shell adopts UV painting process.

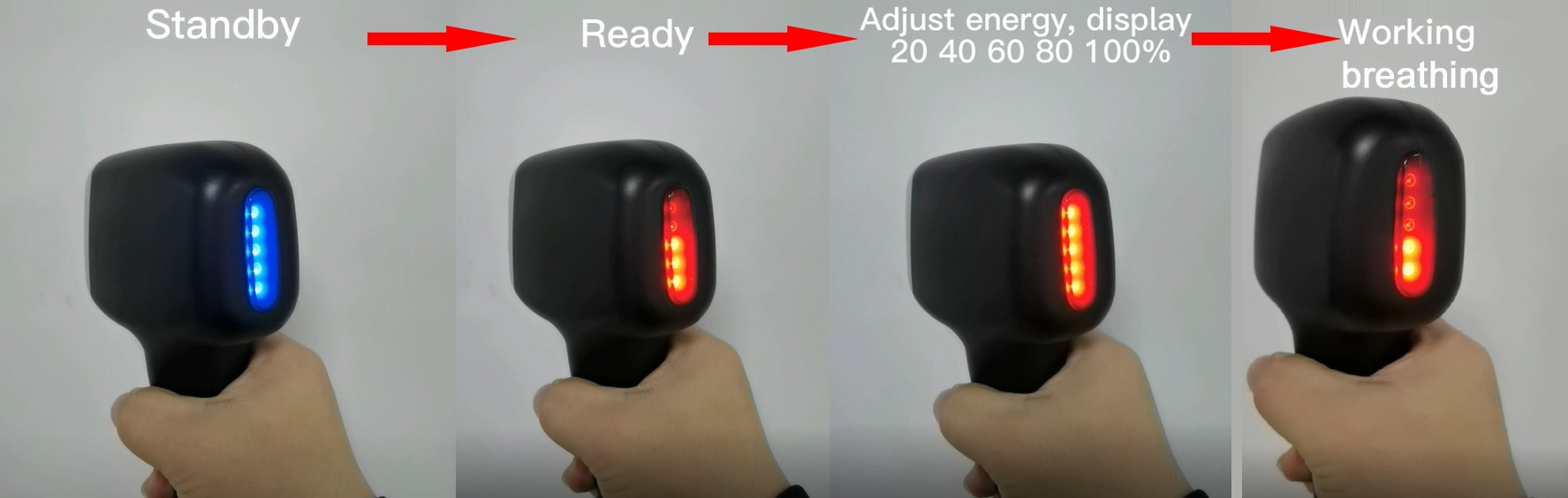

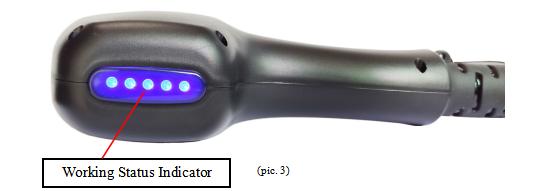

3.Integrated working status indicator.
Standby: display 5 Blue breathing lights.
Preparation: According to the size of the set energy, 1~5 red lights are always on.
Work: According to the size of the set energy, 1~5 red breathing lights will be displayed.

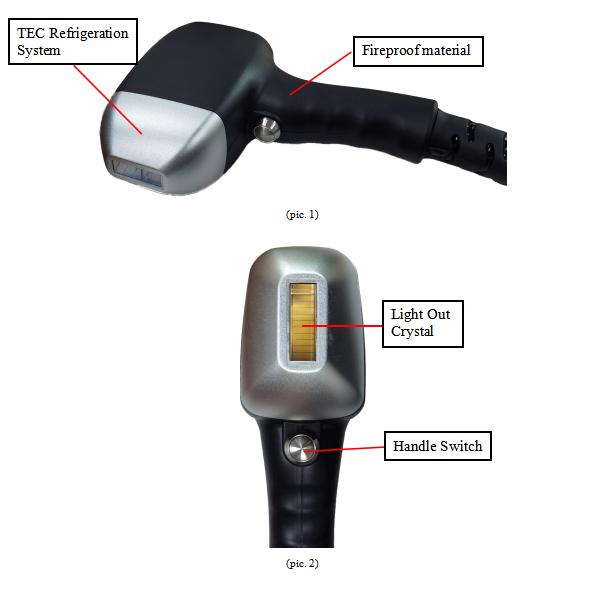

4.Integrated TEC refrigeration system.
5.Integrated water cooling system.

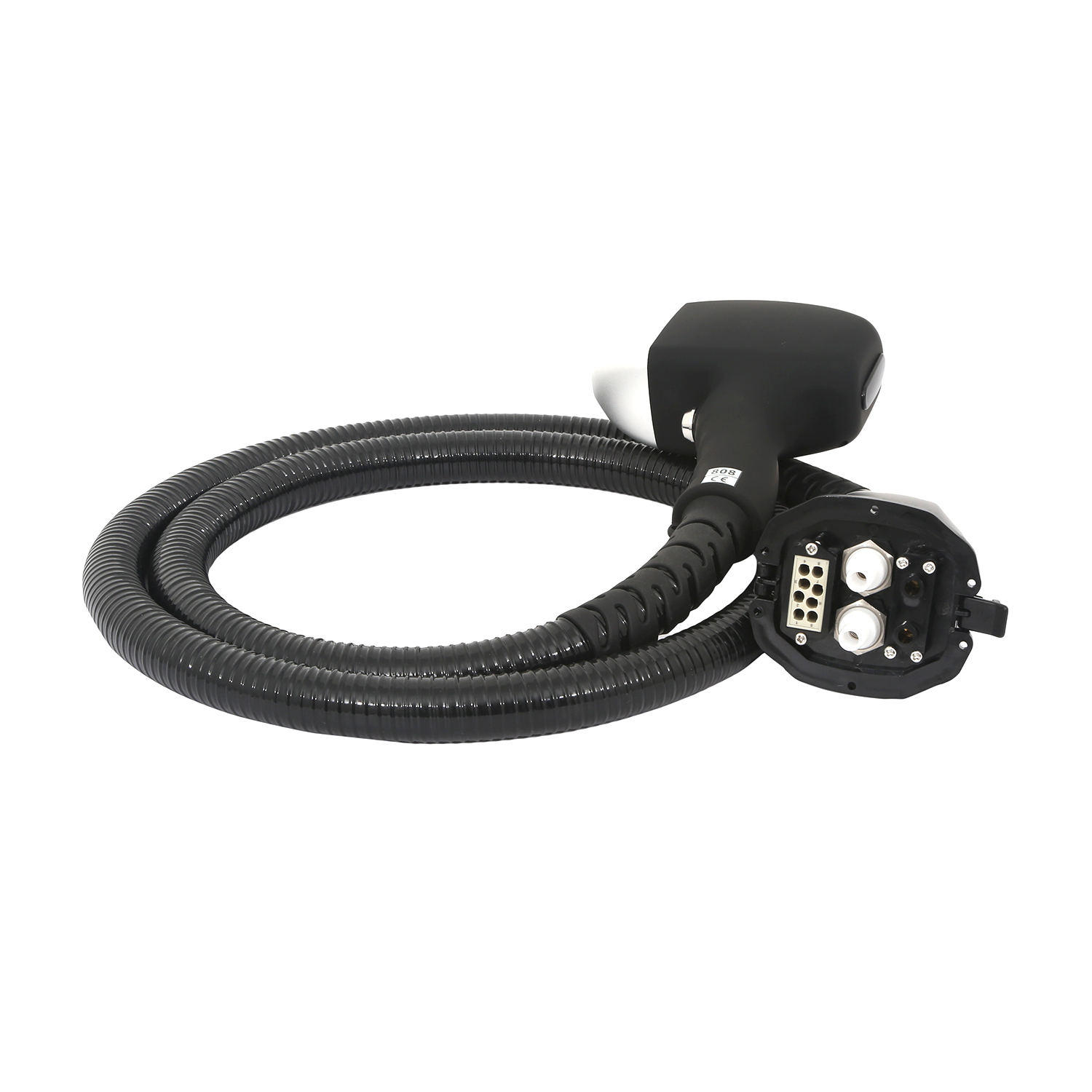

6.Universal plug head.
Paper box packaging, with product name, model, manufacturer’s quality department inspection certificate, manufacturing date and other information on the power supply body.
This packaging is suitable for transportation by car, ship, airplane, train, etc. During transportation, it should be rainproof and handled in a civilized manner.
